• mcr Monsun BO Mercor

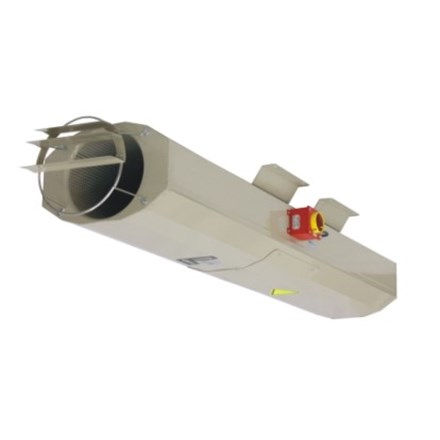

mcr Bora BO - unidirectional / reversible jet fan

Key details

Fire resistance classes:

  • not required

Declaration of conformity HW/3/2017.



Description

mcr Bora BO jet fans are used in comfort ventilation systems. These fans are used for forcing through clean air for the purpose of building ventilation, for instance. Due to their design the air or smoke is directed in a specific direction and moves with certain forced velocity.

The devices are adapted for indoor, horizontal position.

Get in touch

Sales

Download

  • unidirectional or reversible making is available
  • available diameters: 290, 310, 350, 380, 400, 450, 500, 560 mm
  • draft force up to 92 N
  • rotation speeds n = 1 500; 3 000 RPM
  • nominal power 0.55 kW - 22 kW
  • IP 55 protection class

Detailed technical specifications are contained in the technical catalogue.

  • Production halls and warehouses
  • Logistics centers
  • Public buildings
  • Commercial buildings
  • Residential buildings

making variants:

  • one-speed
  • two-speed
  • unidirectional
  • reversible

mcr Bora jet fans come with holders or installation braces as standard, depending on the size of fan and type of its housing. Depending on the type of operation (reversible or unidirectional), the fans are equipped in standard with deflectors or cover grills. The fans may be equipped with electric junction boxes and service switches.
