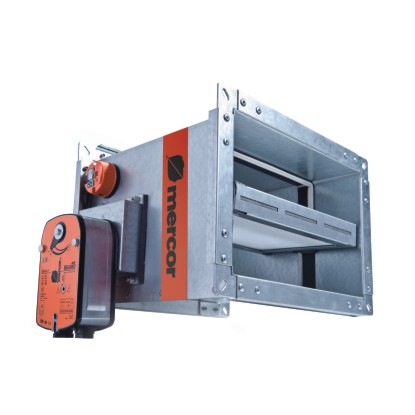

mcr FID S/S c/P - single-blade low-resistance cut-off fire damper for comfort ventilation

Fire resistance class: EI120(ve ho i↔o)S
Certificate of constancy of performance 1488-CPR-0203/W and 1396-CPR-0114.

Dampers certified for conformance with EN 15650.

Dampers are classified as per EN 13501-3 and tested according to EN 1366-2.

Declaration of performance 006-05-CPR-2015.



Optional EX making of dampers (as per ATEX directive) for applications in explosion hazard zones.

KDB ATEX 17.0616, EU Declaration of conformity 001-01-2017.



Cut-off dampers of fire resistance independent from direction of air flow and of installation side.

Reduced acoustic noise and hydraulic resistance in the system due to reduction in thickness of the barrier.



mcr FID S/S c/P low-resistance cut-off dampers are designed for use in general ventilation installations, in points of penetration of these installations through vertical and horizontal building partitions. The dampers are used, among others, for installations with increased acoustic requirements. During fire, they allow to maintain fire resistance of the building partition through which ventilation and air conditioning ducts run. They also prevent propagation of fire, smoke and fire gases to the safe part of the building.

When made for potentially explosive zones (EX variant), the dampers may operate in zone 1 (risk of explosion of gases inside and outside of ventilation ducts) and zone 21 (risk of explosion of dust outside ducts). The dampers conform to the requirements of group II category 2G and -/2D.



  • reduced hydraulic resistance
  • bracing-reinforced damper barrier - increased mechanical strength
  • installation in walls and ceilings
  • optional making in EX variant
  • operating reliability up to 10 000 cycles

Dimensions:

  • nominal width from 200 to 1000 mm
  • nominal height from 200 to 800 mm
  • maximum area of section of single damper not larger than 0.8 m2

Apart from standard dimensions, dampers can be customized to any size within the specified ranges.


Control:

  • RST mechanism - thermal trigger 72oC (optionally 95oC) on partition, actuating spring, manual arming;
  • RST/WK1 mechanism - thermal trigger 74oC (optionally 95oC) on partition, actuating spring and limit switch, manual arming;
  • RST-KW1/S - integrated mechanism - thermal trigger 74oC (optionally 95oC), in the mechanism, actuating spring, manual arming;
  • RST-KW1/S/WK1 or WK2 mechanism – integrated mechanism - thermal trigger 74oC (optionally 95oC) in the mechanism, actuating spring, one or two limit switches, manual arming;
  • RST-KW1/24l mechanism – integrated mechanism - thermal trigger 74oC (optionally 95oC) in the mechanism, actuating spring, one or two limit switches, electromagnetic trigger responding to current impulse, U=24V DC manual arming;
  • RST-KW1/24P mechanism – integrated mechanism (thermal trigger 74oC (optionally 95oC) in the mechanism, actuating spring, one or two limit switches, electromagnetic trigger responding to power decay, U=24V DC, manual arming;
  • Belimo type mechanism – actuators series with return spring and thermoelectric trigger (BFL, BFN, EXBF series).

The use of MP230/24 element enables the powering/triggering of KW1 mechanism with 230V AC voltage.

Detailed technical data are contained in the technical catalogue.

Making variants:

  • mcr FID S/S c/P [BFL…-T, BFN…-T, EXBF]–  fire cut-off damper for ventilation ducts, with electric actuator with return spring with thermoelectric trigger - closing and opening of damper using actuator
  • mcr FID S/S c/P [RST] – fire cut-off damper for ventilation ducts with spring actuator and thermal activator
  • mcr FID S/S c/P [RST-KW1] – fire cut-off duct for ventilation ducts with spring actuator with integrated thermal activator; electromagnetic activator and limit switches available optionally

Additional equipment:

  • WK1 – limit switch (closed barrier signal)
  • WK2 – limit switch ( damper open/shut signal)
