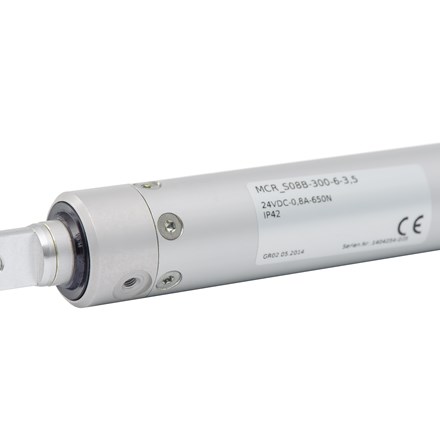

Actuators are used for opening flaps and windows of smoke exhausting system, as well as for daily ventilation. They are supplied by 24V- direct voltage. Casings cover is made of anodized aluminum. In standard, they feature anti-interference condenser, overload switch and limit switches.
Types

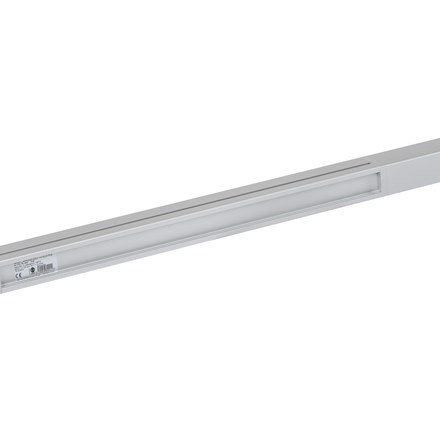

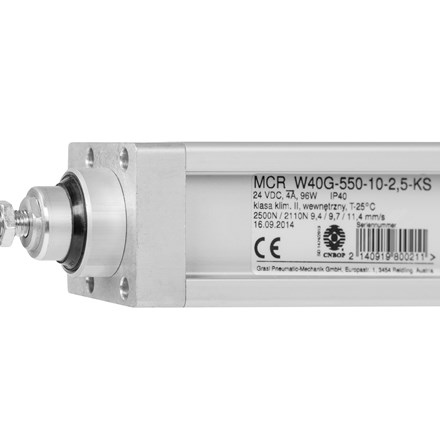

1. mcr W spindle electric actuators
|
ACTUATOR TYPE |
DIMENSION X1 [mm] |
DIMENSIOn X2 [mm] |
|
mcr W 08 / 10 / 13 |
27 |
124 |
|
mcr W 16 / 20 / 26 |
27 |
150 |
|
mcr W 40 / 60 |
43 |
152 |
|
ACTUATOR TYPE |
SUPPLY VOLTAGE [V] |
RATED CURRENT [A] |
MAX. LOAD [N] |
RATED LOAD [N] |
SPEED AT RATED LOAD [mm/s] |
STANDARD STROKE LENGHTS [mm] |
|
mcr W (08A) |
24 |
0,8 |
900 |
900 |
3,4 |
350,550,750 |
|
mcr W (10A) |
24 |
1,0 |
1200 |
900 |
3,4 |
350,550,750 |
|
mcr W (10B) |
24 |
1,0 |
850 |
650 |
6,1 |
350,550,750 |
|
mcr W 13B |
24 |
1,3 |
1150 |
650 |
6,1 |
350,550,750 |
|
mcr W 13C |
24 |
1,3 |
830 |
450 |
8,4 |
350,550,750 |
|
mcr W 13G |
24 |
1,3 |
870 |
490 |
8,1 |
350,550,750 |
|
mcr W 16B |
24 |
1,6 |
1240 |
860 |
7 |
350,550,750 |
|
mcr W 16G |
24 |
1,6 |
940 |
650 |
9,3 |
350,550,750 |
|
mcr W 20B |
24 |
1,6 |
1630 |
860 |
7 |
350,550,750 |
|
mcr W 20G |
24 |
2,0 |
1240 |
650 |
9,3 |
350,550,750 |
|
mcr W (20H) |
24 |
2,0 |
870 |
460 |
13,3 |
350,550,750 |
|
mcr W 26G |
24 |
2,6 |
1670 |
650 |
9,3 |
350,550,750 |
|
mcr W 26H |
24 |
2,6 |
1180 |
460 |
13,3 |
350,550,750 |
|
mcr W 40G |
24 |
4,0 |
2500 |
2110 |
9,7 |
350,550,750 |
|
mcr W 40H |
24 |
4,0 |
1600 |
1350 |
13,9 |
350,550,750 |
|
mcr W 40N |
24 |
4,0 |
1890 |
1590 |
10,4 |
350,550,750 |
|
mcr W 60J |
24 |
6,0 |
2160 |
1120 |
17,9 |
350,550,750 |
|
mcr W 60P |
24 |
6,0 |
2560 |
1320 |
13,4 |
350,550,750 |

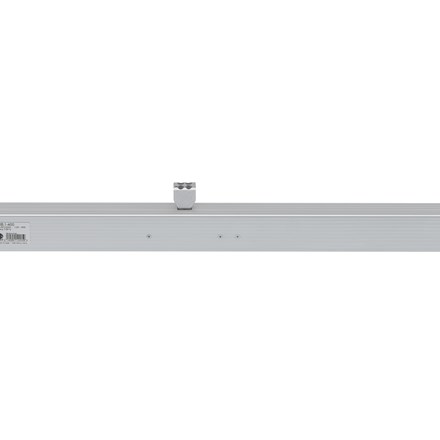

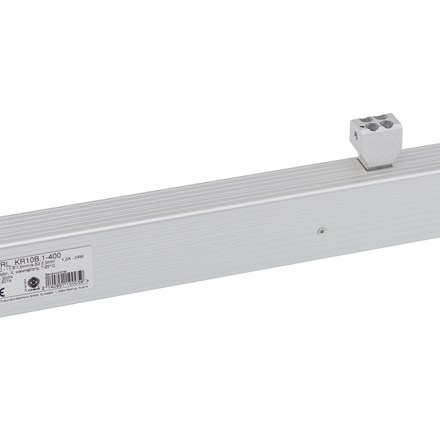

2. mcr L electric chain actuators
|
ACTUATOR TYPE |
SUPPLY VOLTAGE [V] |
RATED CURRENT [A] |
SHUTTING/OPENING FORCE [NN] |
SPEED AT RATED LOAD [mm/s] |
STANDARD STROKE LENGTHS [mm] |
|
mcr L KR10B |
24 |
1,0 |
300/300 |
7,6 |
400 |
|
mcr L KR10B |
24 |
1,0 |
300/300 |
7,6 |
500 |
