alarm boxes

Alarm boxes are devices used for remote alarm opening of flaps through the energy of compressed CO2 contained in the cartridge integrated in the box.

Type of boxes

Dimensios of selected alarm boxes:

TYPE	BOX DIMENSIONS - WIDTH x HEIGHT x DEPTH				MAXIMUM CARTRIDGE SIZE [g]
TYPE	MANUAL OPENING	MANUAL AND ELECTRIC OPENING	MANUAL AND ELECTRIC CLOSING	MANUAL AND ELECTRIC OPENING, MANUAL CLOSING	MAXIMUM CARTRIDGE SIZE [g]
AK6	110 x 500 x 100	-	-	-	500
AK7	110 x 300 x 100	-	-	-	55
AL 10.3	200 x 350 x 130	200 x 350 x 130	-	-	150
AK 10.5	200 x 500 x 130	200 x 500 x 130	-	-	500
AK 10.7	200 x 650 x 130	200 x 650 x 130	-	-	750
AK 10.9	200 x 700 x 170	200 x 700 x 170	-	-	1500
AK 11.3	-	-	300 x 350 x 130	300 x 350 x 130	150
AK 11.5	-	-	300 x 500 x 130	300 x 500 x 130	500
AK 11.7	-	-	300 x 650 x 130	300 x 650 x 130	750
AK 11.9	-	-	320 x 700 x 170	320 x 700 x 170	1500

Technical description of standard

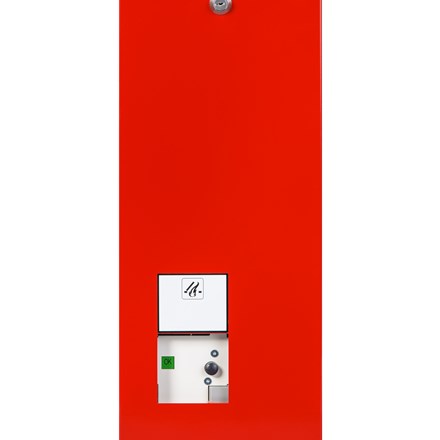

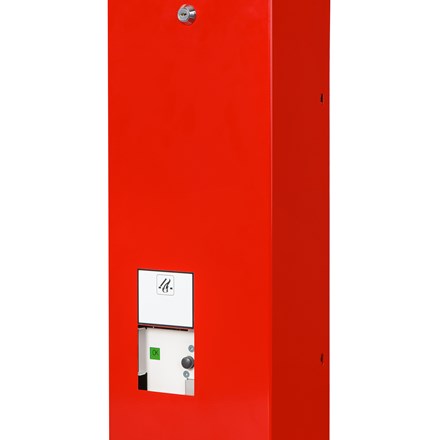

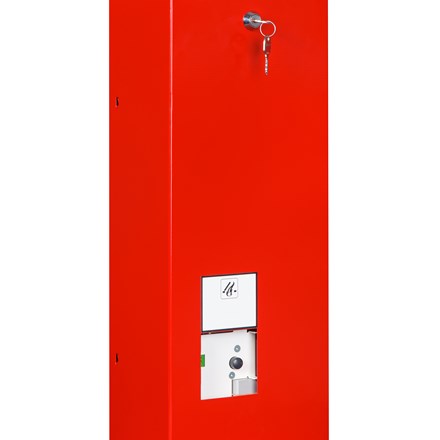

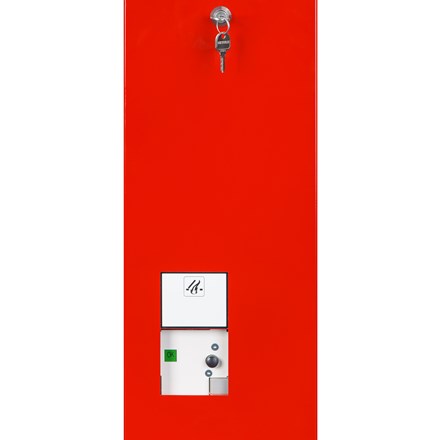

steel sheet box in RAL3000 red color,

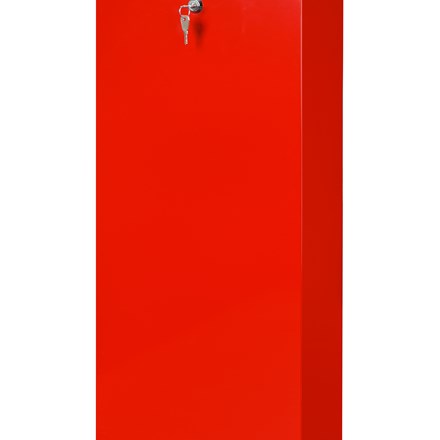

lockable cover,
lever or button controlling alarm opening, including activation indicator visible through glass,
replaceable glass,

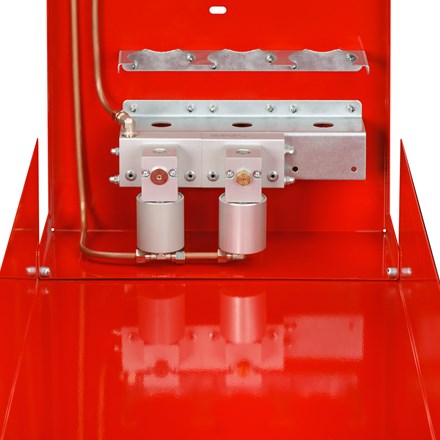

includes valves in configuration dependent on client's needs; basic making: opening only, or opening and closing; optionally: opening by remote 24V signal,

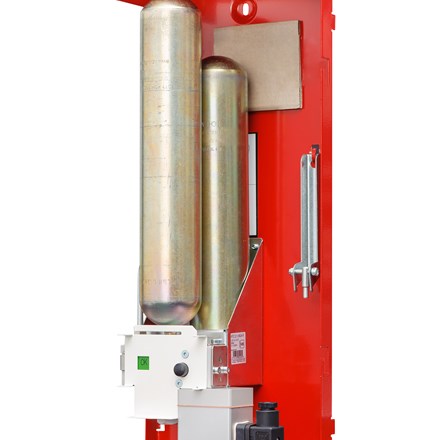

sizes and quantities of cartridges in the box dependent on client application; box size dependent on the size of integrated cartridges,
connections for 6 mm pipe; optionally: for 8 mm pipe, outlet from above,
connections for CO2 cartridges: ½”UN),
working temperature: –20 ÷ 50 °C,
maximum working pressure in CO2 circuits: 8.0 Pa,
