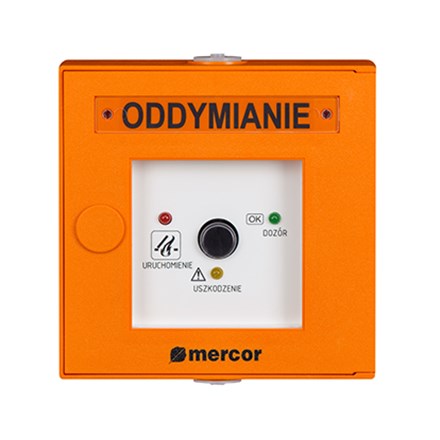

mcr RPO-1 manual desmoking button is used in desmoking systems for manual alarm triggering, and for indication of operating status of the desmoking unit. Additionally, the button allows for remote clearing of errors
| PARAMETER | VALUE |
| alarm button parameters | 24 V-, max 100 mA |
| operating temperature range | -10°C ÷ 55°C |
| casing protection grade | IP 30 |
| dimensions (width x height x depth) | 135 x 135 x 33 mm |
| min. number of cable conductors running to unit | (i.e. 4 x 2 x 0,8) |
| casing color | orange |
The button is dedicated for working with mcr 0204 and mcr 9705 desmoking control units.
Button designed for installation inside buildings.
