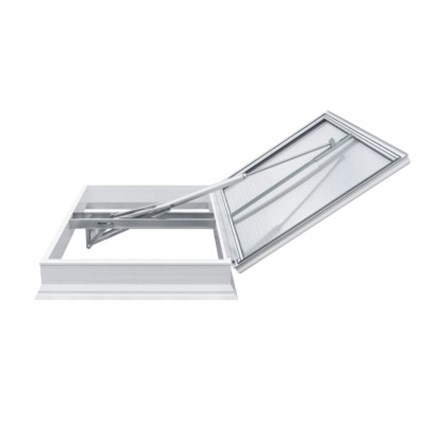

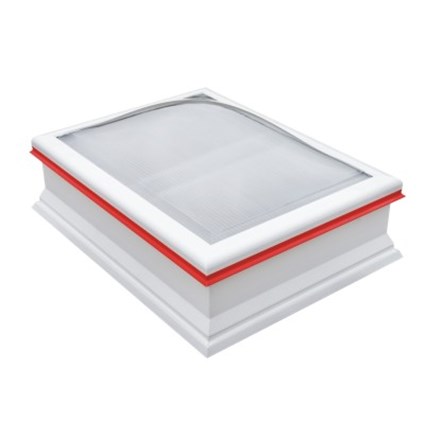

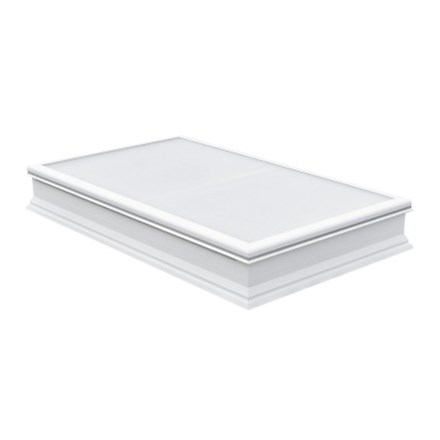

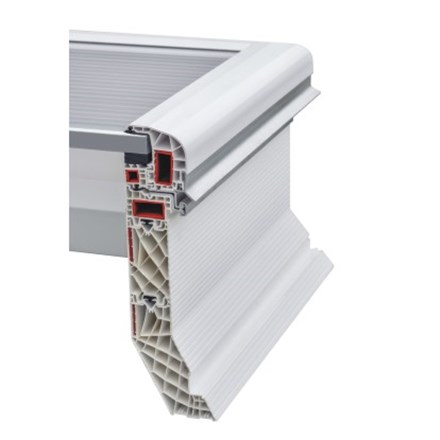

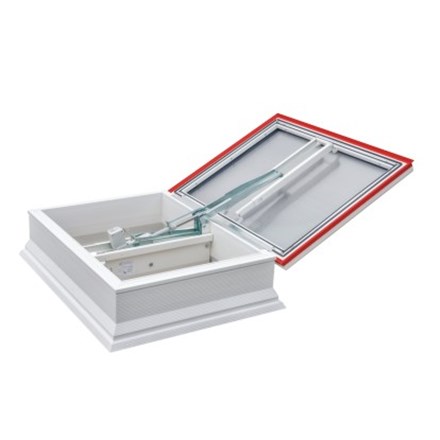

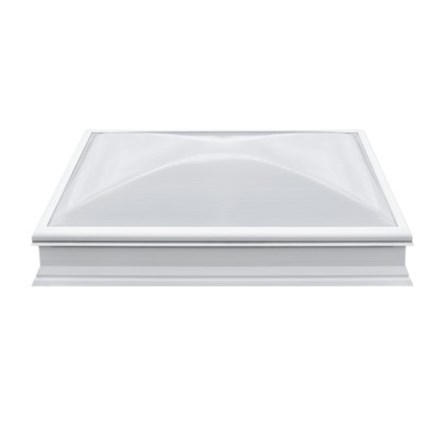

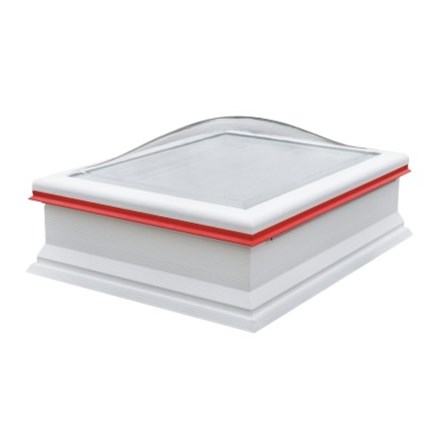

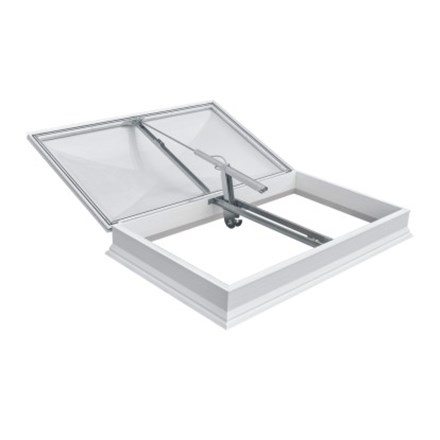

mcr ULTRA THERM SMOKE HATCH CLASSIFICATION TO PN-EN 12101-2: 2005
|
80 [cm] x 120 [cm] |
Min. nominal size |
|
200 [cm] x 300 [cm] |
Max. nominal size |
|
SL250 ÷ SL950 |
Snow load class |
|
WL 750 ÷ WL1500 |
Wind load class |
|
B 300 |
High temperature resistance class |
|
Re 100 ÷ 300 |
Reliability |
|
A1 |
Reaction to fire class for metal components |
|
B-s2-d0 |
Reaction to fire class for polycarbonate infill |
|
F |
Reaction to fire class for other components |
|
60 [s] |
Maximum vent opening time to working position |
|
140° ÷ 160° |
Vent opening angle |
